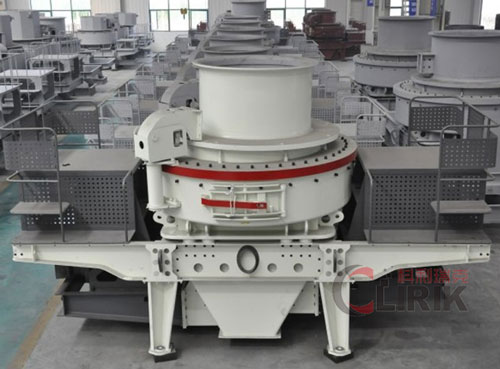

VSI-5X impact Crusher

VSI-5X impact Crusher
VSI-5X impact Crusher for sale, VSI-5X impact Crusher  manufacturer, VSI-5X impact Crusher  supplier
VSI-5X impact Crusher  is the Clirik’s latest generation of vertical shaft impact impact Crusher , which introducing Germany technology and owning a number of patents and independent intellectual property rights. VSI-5X impact Crusher  has become the core product in sand making industry, which integrating three types of impact Crusher s.
VSI-5X impact Crusher  has become the core product in sand making industry, which introducing Germany technology, owning a number of patents and independent intellectual property rights and integrating three types of impact Crushers.

The main features of VSI-5X impact Crusher  as follows:
1. After improved design, rotor with deep chamber increases 30% capacity of materials throughput.
2. Side plate direction can be changed to increase material utility ratio, operating ratio can be increased 48%.
3. Worn hammer with combined type is only changed to reduce operating cost 30%. Another pair of vice hammer is added to prevent from damaging main hammer and side plate.
4. The most key wear resistant material uses wear resistant and high temperature resistant material in American important area.
5. Rhombus shape impact plate is used to prevent side plate from being damaged.
6. Bearing is famous international brand imported from Japan, Sweden, etc.
7. Perfect discharge and smooth curve reduce resisting force when material flows, so capacity is increased greatly.
8. Spread dish with double purposes can make two feeding ways change easily.
9. Special seal structure under main shaft guarantee no oil leak without seal.
10. Japanese hydraulic opening cover device is originally imported. The cover is moved easily and inspection of inner part is easy.
11. Motor with high grade of protection is selected. The motor has features of high efficiency, low noise, etc. The motor complies with IEC, insulation grade F, protection grade IP54/55.

Application of VSI-5X impact Crusher
VSI-5X impact Crusher  is widely applied in many industries, such as cement making, refractory making,glass raw materials making, sand making, and metallurgical industry, etc. It is suitable for ores and rocks in different hardness. VSI-5X impact Crusher  is highly recommended to crush high hardness materials as iron ore,nonferrous metals, corundum, and bauxite, quartz sand, and basalt, etc.

Working Principle of VSI-5X impact Crusher
At-center feeding
Materials fall into the hopper and then through the feed opening at center enter the high speed rotor which will throw out the materials with high speed. Firstly, materials strike those materials that are free falling down. Then, materials strike the materials-liner in the vortex or the impact liner and are rebounded to the top of crushing cavity and then fall down. After that, the falling materials with materials shot from the impeller form a continuous materials curtain. Lastly, crushed materials will be charged from the discharging opening.
Multiple feeding
The materials fall into the hopper and circle-hole, and then they will be divided into two parts by the distributing plate. One part of materials cross the distributing plate and enter the high speed impeller,and then materials are accelerated and thrown out. The other part falls down from the sides of distributor. Materials firstly strike the free falling down materials. Then, materials strike the materials-liner in the vortex or the impact liner and are rebounded to the top of crushing cavity and then fall down. The falling materials with materials shot from the impeller form a continuous curtain of materials. At last, crushed materials will be discharged from the discharging opening.

Technical Data of VSI-5X impact Crusher
Model Feed at center&sides Feed at center Soft Material Hard Material REV (r/min) Power (kw) Motor Model Machine Size (mm)
Capacity (t/h) Max.Feeding (mm)
VSI5X7615DR 150-280 70-140 35 30 1700-1900 4-75×2 Y280S-4/75 4100×2330×2300
VSI5X8522DR 240-380 120-190 40 35 1500-1700 4-110×2 Y315S-4/110 4140×2500×2700
VSI5X9532DR 350-540 180-280 45 40 1300-1510 4-160×2 Y315L1-4/160 4560×2600×2900
VSI5X1145DR 500-640 250-360 50 45 1100-1310 4-220×2 Y355M1-4/220 5000×2790×3320
Note: This specification is just reference, any changes are subject to the products.

VSI-5X impact Crusher price:
If you want to know the VSI-5X impact Crusher price or have any questions about VSI-5X impact Crusher , please do not hesitate to contact us.
